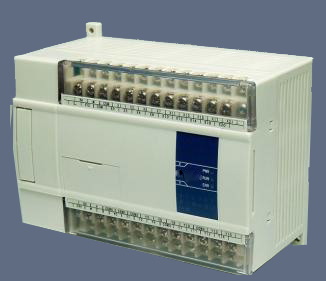

HV3 - PLC digital Input and digital Output
PLC
8 DI/6 DO - 18 DI/14 DO - 28 DI/20 DO - 36 DI/24 DO, AC220 power supply.
Can be expanded with expansion module, BD borrad ( Except 8DI/6DO) .
Support RTC, power-off retentive.
Support basic logic control and data operation.
Support high speed count, pulse output, exterior interruption, C language function block, free switch for I/O points, free protocol communication and MODBUS communication.
PRODUCTS STANDARS
1. General Specifications.
Item | Specification |
Insulation Voltage | Above DC 500V 2MΩ |
Noise Resistance | 1000V 1uS pulse for 1 minute. |
Environment Temperature | 0℃~60℃ |
Ambient Humidity | 5%~95% |
COM 1 | RS-232, be connected to host machine or HMI for programming or debugging. |
COM 2 | RS-485/RS-232，network or connect to intelligent instrument, inverter, etc. |
COM 3 | BD board extensional communication port RS-485/RS232. (Except 8 DI/6 DO) |
Installation | M3 screw fixed or DIN46277 (35mm width) guide rail installation. |
Grounding | The third type grounding (Never perform common grounding with strong power system). |
2. Functional Specifications.
Item | Specification | |
Program Operation Mode | Circulation scanning mode, timing scanning mode | |
Program Mode | Instructions and ladder chart. | |
Dispose Speed | 0.5us | |
Power Failure Holding | FlashROM. | |
User Program’s Capacity | 8000 steps. ( 2500 steps the model 8DI/6DO) | |
I/O Points | According to Model. | |
Output Format | Relay. | |
Power Supply | AC220V. | |
Interior Coil’s Points (M) | 8512 points. | |
Timer（T） | Points | 620 points. |
Specification | 100mS timer：set time 0.1~3276.7 seconds | |
Counter（C） | Points | 635 Points. |
Specification | 16 bits counter:：Set value K0~32767 | |
Data Register（D） | 8512 characters. | |
FlashROM Register（FD） | 2048 characters. | |
High-speed Count Format | High speed counter, pulse output, exterior interruption. | |
Timing Scanning Interval Setting | 1~99mS | |
Password Protection | 6 characters ASCII. | |
Self-diagnose Function | Power on self-diagnose, monitor timer, grammar check. | |
